proudcts > Reversing camera system > 3.5", 4", 4.3", 5" camera kit -

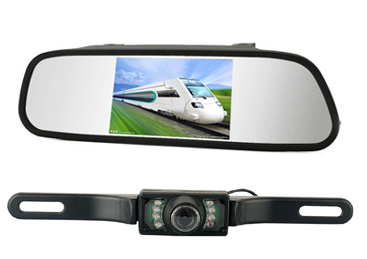

RV-5005

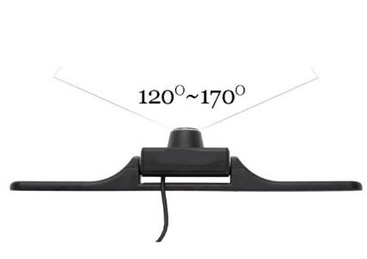

Monitor Spec Camera Spec 5inch digital LCD mirror monitor Image device: PC7070/7080/7440 Resolution: 800(h) x RGB x 480(v) Lens angle: 120/170° contrast : 350:1 Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 12V± 10% 1-4W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 4:3 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5℃- +50℃ Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20℃ - +60℃ Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen w/o signal input Lens: 1.7mm Operation temperature：-20℃ - 75℃，RH 95% MAX waterproof,shockproof, resistance to temp.&humidity
-

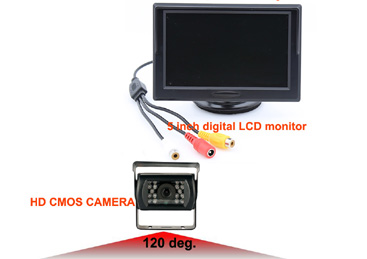

RV-5000
Monitor Spec three models Camera Spec 5inch digital LCD monitor Image device: PC7070/7080/7440 Resolution: 800(h) x RGB x 480(v) Lens angle: 120/170° contrast : 350:1 Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 12V± 10% 1-4W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 4:3 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5℃- +50℃ Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20℃ - +60℃ Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen w/o signal input Lens: 1.7mm Operation temperature：-20℃ - 75℃，RH 95% MAX waterproof,shockproof, resistance to temp.&humidity -

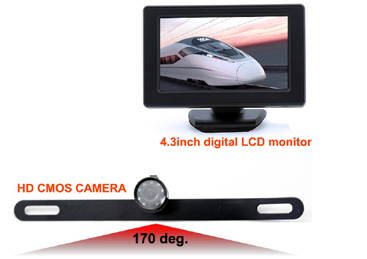

RV-4320
Monitor Spec Camera Spec 4.3inch digital LCD dashboard monitor Image device: PC7070/7080/7440 Resolution: 480(h) x RGB x 272(v) Lens angle: 120/170° Visible Area : 96 x 54mm Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 11-32V 1-3W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 16:9 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5°C- +50°C Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20°C - +60°C Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen w/o input Lens: 1.7mm Dimension(L)*(H)*(D): 120*76*16MM Operation temperature：-20℃ - 75℃，RH 95% MAX Net weight: 130g waterproof,shockproof, resistance to temp.&humidity

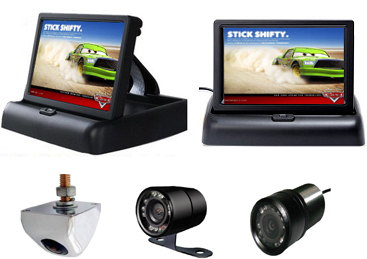

5inch foldable monitor optional -
RV-4300
Monitor Spec Camera Spec 4.3inch digital LCD monitor Image device: PC7070/7080/7440 Resolution: 480(h) x RGB x 272(v) Lens angle: 120/170° Visible Area : 96 x 54mm Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 11-32V 1-3W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 16:9 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5°C- +50°C Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20°C - +60°C Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen when no signal input Lens: 1.7mm Dimension(L)*(H)*(D): 120*76*16MM Operation temperature：-20℃ - 75℃，RH 95% MAX Net weight: 130g waterproof,shockproof, resistance to temp.&humidity -

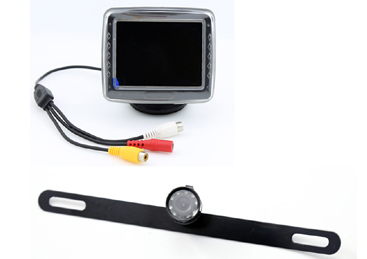

RV-3500
Monitor Spec Camera Spec 3.5inch digital LCD monitor Image device: PC7070/7440/7080 Resolution: 960(h)X240(v) Lens angle: 120/170° View angle: U 40 / D 50 /L 55 / R55 Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 12V± 10% 1-3W Effective pixels: P 580*540, N 580*492 Ratio: 4:3 TV system：PAL/NTSC Video input: VI/V2 (V2 auto reverse) Waterproof: IP67/68 Operation Temp.: +5℃- +40℃ Selectable parking line display Storage Temp.:-20℃ - +60℃ Operation voltage: DC 12V/24V Color: black Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Display: black screen when no signal input Image: mirror/standard selectable Dimension(L)*(H)*(D): 108*69*15MM Consumption: 150mA Net weight: 122g Lens: 1.7mm Operation temperature：-20℃ - 75℃，RH 95% MAX waterproof,shockproof, resistance to temp.&humidity -

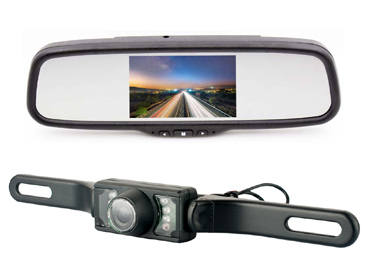

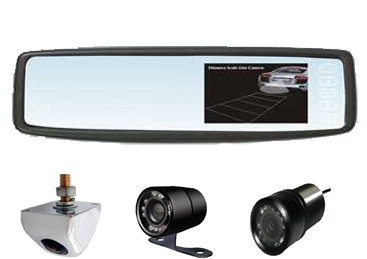

RV-500A
Monitor Spec Camera Spec 5inch digital LCD mirror monitor Image device: 7070/7080/7440 Resolution: 800(h) x RGB x 480(v) Lens angle: 170° Visible Area : 96 x 54mm Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 12V± 10% 1-3W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 16:9 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5℃- +50℃ Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20℃ - +60℃ Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen W/O signal Lens: 1.7mm Display size: 29 x 7.5 x 2cm Operation temperature：-20℃ - 75℃，RH 95% MAX waterproof,shockproof, resistance to temp.&humidity -

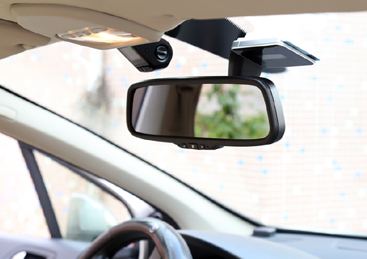

RV-431A
Monitor Spec
Mirror monitor with touch buttonsCamera Spec 4.3inch digital LCD mirror monitor Image device: PC7070/7080/7440 Resolution: 480(h) x RGB x 272(v) Lens angle: 120/170° Visible Area : 96 x 54mm Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 12V± 10% 1-3W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 16:9 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5℃- +50℃ Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20℃ - +60℃ Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen W/O signal Lens: 1.7mm Display size: 29 x 7.5 x 2cm Operation temperature：-20℃ - 75℃，RH 95% MAX waterproof,shockproof, resistance to temp.&humidity -

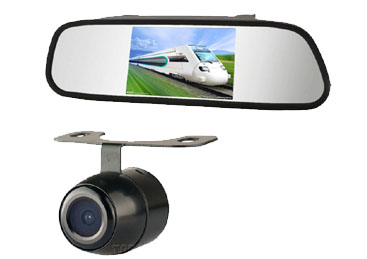

RV-430A
Monitor Spec Camera Spec 4.3inch digital LCD mirror monitor Image device: PC7070/7080/7440 Resolution: 480(h) x RGB x 272(v) Lens angle: 120/170° Visible Area : 96 x 54mm Resolution: 420 TV lines TV system: PAL/NTSC auto-switch TV system：PAL/NTSC Power:DC 12V± 10% 1-3W Effective pixels: P 580*540, N 580*492 Auto save power function TV system：PAL/NTSC Brightness and contrast adjust button Waterproof: IP67/68 Ratio: 16:9 Selectable parking line display Video input: VI/V2 (V2 auto reverse) Operation voltage: DC 12V/24V Operation Temp.: -5℃- +50℃ Minimum illumination: 0.5Lux/F1.2 (0Lux IR on) Storage Temp.:-20℃ - +60℃ Image: mirror/standard selectable Color: black Consumption: 150mA Display: black screen W/O signal Lens: 1.7mm Display size: 29 x 7.5 x 2cm Operation temperature：-20℃ - 75℃，RH 95% MAX waterproof,shockproof, resistance to temp.&humidity
