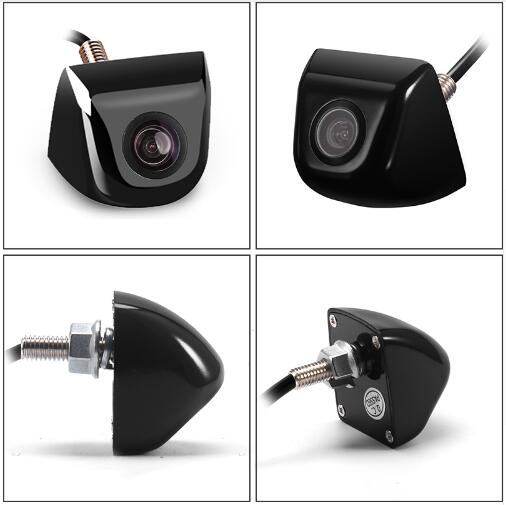

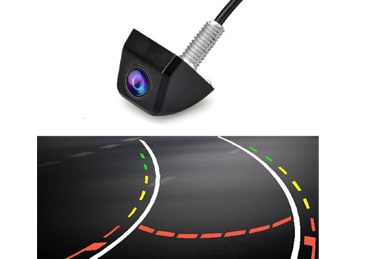

DT-PS-502

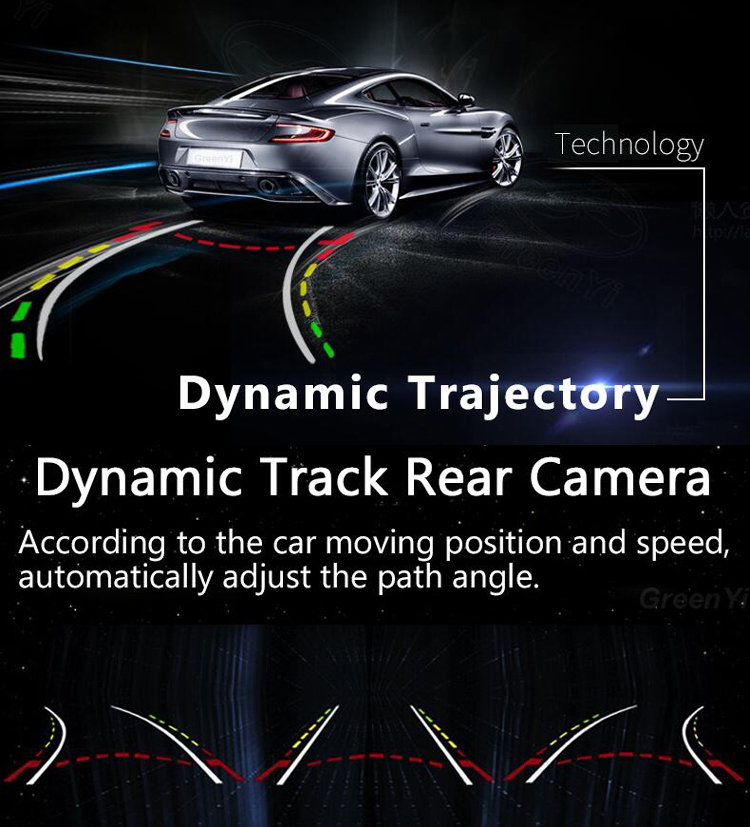

* Intelligent Reverse Trajectory Tracks Camera.* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module.* Imported chips Coms reversing track, picture clarity, stability, good night vision effect.* Imported 150 super wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.1. Pixels: 728(H) * 492(V)2. Power: DC 12V3. View Angle: 150 degree4. Image Sensor: 3089 Coms Camera5. TV system: NTSC ( PAL Optional ) .6. Horizontal Resolution: 600 TV lines7. Sync. System: internal8. S/N Ratio: >48Db9. Electronic Shutter: 1/60 to 1/100,000 seconds10. Video Output: 1.0Vpp, 75Ohm11. White Balance: Auto12. Water-proof: IP6813. Video Cable Length: about 6m
-

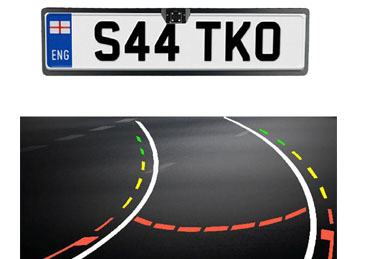

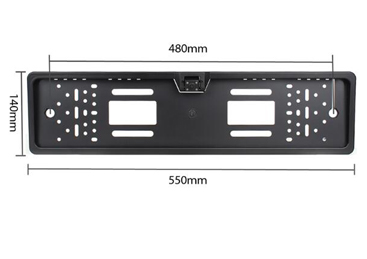

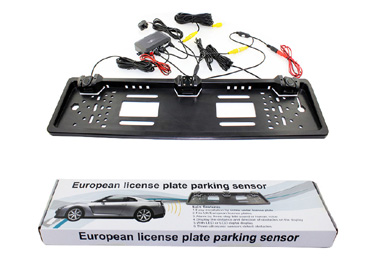

DT-EU830
* Intelligent Reverse Trajectory Tracks Camera.* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module.* Imported chips Coms reversing track, picture clarity, stability, good night vision effect.* Imported 150 super wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.1. Pixels: 728(H) * 492(V)2. Power: DC 12V3. View Angle: 150 degree4. Image Sensor: 7430 Coms Camera5. TV system: NTSC ( PAL Optional ) .6. Horizontal Resolution: 600 TV lines7. Sync. System: internal8. S/N Ratio: >48Db9. Electronic Shutter: 1/60 to 1/100,000 seconds10. Video Output: 1.0Vpp, 75Ohm11. White Balance: Auto12. Water-proof: IP6813. Video Cable Length: about 6m
14. With Full glass lens camera optional
-

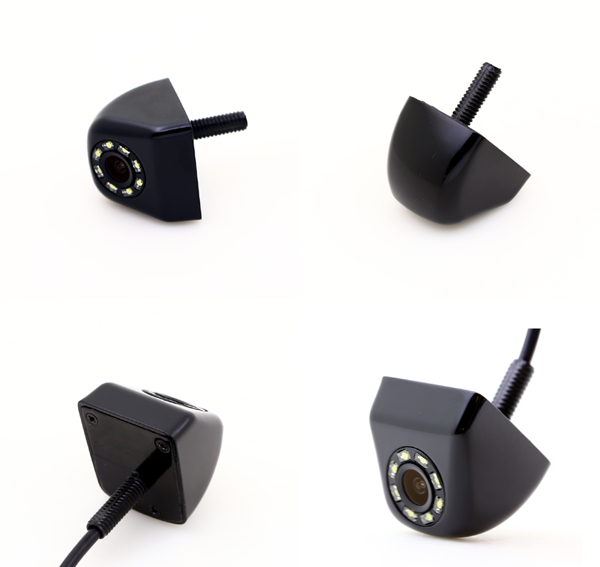

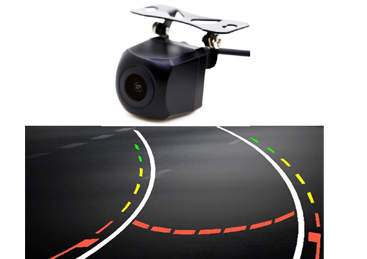

DT-650
* Intelligent Reverse Trajectory Tracks Camera.* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module.* Imported chips Coms reversing track, picture clarity, stability, good night vision effect.* Imported 150 super wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.1. Pixels: 728(H) * 492(V)2. Power: DC 12V3. View Angle: 150 degree4. Image Sensor: 3089 Coms Camera5. TV system: NTSC ( PAL Optional ) .6. Horizontal Resolution: 600 TV lines7. Sync. System: internal8. S/N Ratio: >48Db9. Electronic Shutter: 1/60 to 1/100,000 seconds10. Video Output: 1.0Vpp, 75Ohm11. White Balance: Auto12. Water-proof: IP6813. Video Cable Length: about 6m
14. With night vision optional
-

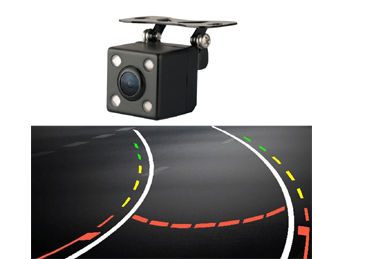

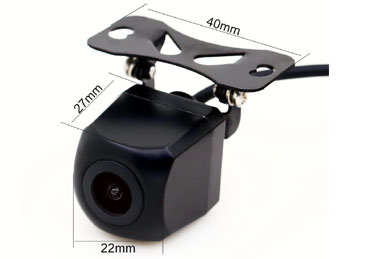

DT-320-5
* Intelligent Reverse Trajectory Tracks Camera.* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module.* Imported chips Coms reversing track, picture clarity, stability, good night vision effect.* Imported 150 super wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.1. Pixels: 728(H) * 492(V)2. Power: DC 12-24V3. View Angle: 150 degree4. Image Sensor: 3089 Coms, full glass lens5. TV system: NTSC ( PAL Optional ) .6. Horizontal Resolution: 600 TV lines7. Sync. System: internal8. S/N Ratio: >48Db9. Electronic Shutter: 1/60 to 1/100,000 seconds10. Video Output: 1.0Vpp, 75Ohm11. White Balance: Auto12. Water-proof: IP6813. Video Cable Length: about 6m
14. With special bracket optional
15. With RCA or 4PIN connector optional

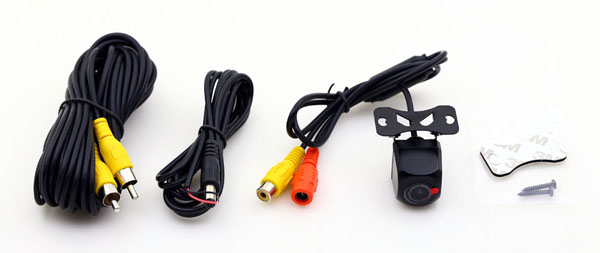

1. Dynamic track rear camera2. Package box3. 6M video cable4. Power cable5. Manual
-

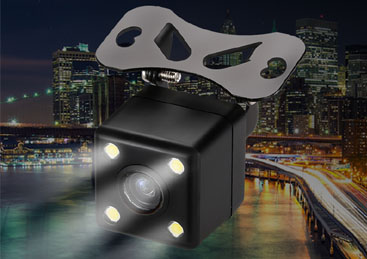

DT-320
* Intelligent Reverse Trajectory Tracks Camera.* it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module.* Imported chips Coms reversing track, picture clarity, stability, good night vision effect.* Imported 150 super wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.* Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.1. Pixels: 728(H) * 492(V)2. Power: DC 12V3. View Angle: 150 degree4. Image Sensor: 3089 Coms Camera5. TV system: NTSC ( PAL Optional ) .6. Horizontal Resolution: 600 TV lines7. Sync. System: internal8. S/N Ratio: >48Db9. Electronic Shutter: 1/60 to 1/100,000 seconds10. Video Output: 1.0Vpp, 75Ohm11. White Balance: Auto12. Water-proof: IP6813. Video Cable Length: about 6m
14. With special bracket optional
Packaging
1. Dynamic track rear camera2. Package box3. 6M video cable4. Power cable5. Manual
