proudcts > Anti-collision radar system > LED&LCD compatible radar kit -
PS-5200

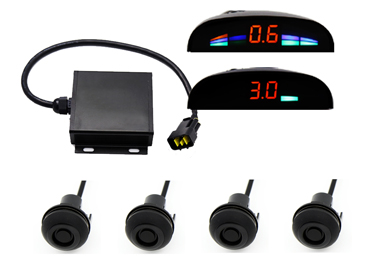

PS-5200 anti-collision radar system with LED monitor display
1, 0.3-3.8m range detection high sensitive sensor
2, work with LED monitor only compatible
3, work with lcd monitor, camera compatible
4, industrial design metal housing control box.
5, beep alert 5steps
7, DC12-32V wide operation voltage for all vehicles
8, sensor with rubber or metal bracket optional
9, full set waterproof, anti-shock, anti-interference can work in harsh environment
10, Ideal for various vehicles for back side blind zone detection
11, Client can choose the radar system work with LED monitor only or work with lcd monitor, camera together.Control Box spec Sensor detection distance: Rated voltage: 24V Concrete wall: 12.46ft(3.8m) Rated Power: <13W Vehicle: 9.84-11.48ft(3m-3.5m) detection range: 0.3 ~ 3.8M Max. Person: 9.84ft(3m) Display Resolution: 0.1m Post(75mm diameter): 7.87ft(2.4m) Detection angle: single angle 70 ° ± 15 ° Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R Operating Temperature: -40 ° C ~ +80 ° C Waterproof rate: IP67 Waterproof: IP66 Sensor installation height: 0.6M--1.3M Shockproof: 10G Sensor installation space between two sensors: 0.2--0.3M Sensor with metal bracket/rubber bracket optional -
PS-5500

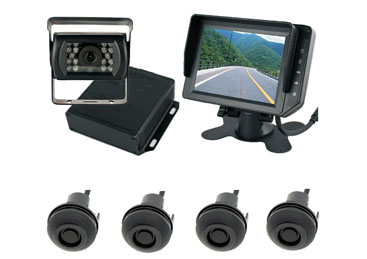

PS-5500 anti-collision radar system with LCD monitor display
1, 0.3-3.8m range detection high sensitive sensor
2, work with LED monitor only compatible
3, work with lcd monitor, camera compatible
4, industrial design metal housing control box.
5, beep alert 5steps
7, DC12-32V wide operation voltage for all vehicles
8, sensor with rubber or metal bracket optional
9, full set waterproof, anti-shock, anti-interference can work in harsh environment
10, Ideal for various vehicles for back side blind zone detectionControl Box spec Sensor detection distance: Rated voltage: 24V Concrete wall: 12.46ft(3.8m) Rated Power: <13W Vehicle: 9.84-11.48ft(3m-3.5m) detection range: 0.3 ~ 3.8M Max. Person: 9.84ft(3m) Display Resolution: 0.1m Post(75mm diameter): 7.87ft(2.4m) Detection angle: single angle 70 ° ± 15 ° Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R Operating Temperature: -40 ° C ~ +80 ° C Waterproof rate: IP67 Waterproof: IP66 Sensor installation height: .6M--1.3M Shockproof: 10G Sensor installation space between two sensors: 0.2--0.3M Sensor with metal bracket/rubber bracket optional Monitor Spec Camera Spec 5" digital panel MONITOR Image Sensors: 1/3" HD SHARP CCD Ratio: 4:3 TV System:PAL / NTSC Pixel: 640*480 waterproof rate:Ip67 Contrast: 500:1 Effective Pixels:512 x 582 pixels / 512 x 492 pixels Brightness: 400 cd/m2 Resolution:420TV lines System: PAL/NTSC auto switch Minimum Illumination:0.2Lux / F1.2 (0Lux IR ON) Video input: 2 way Pin Lens:f=2.5mm Audio input: 1 way optional Lens Angle:120° Backup: V2 auto reverse Power Supply:DC12-32V View angle: U/D/L/R Current Consumption:≤300mA Power supply: DC10-36V Operating Temperature:-20°C~70°C ,RH95％ MAX Operating temp.:-10°C ~ 65°C With duckfeet bracket, sunshade -
PS-7300

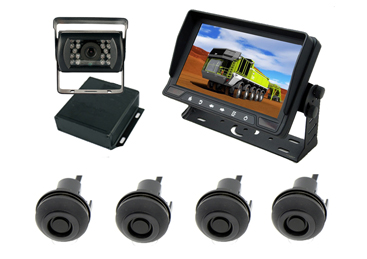

PS-7300 anti-collision radar system with LCD monitor display
1, 0.3-3.8m range detection high sensitive sensor
2, work with LED monitor only optional
3, work with lcd monitor, camera optional
4, industrial design metal housing control box.
5, beep alert 5steps
7, DC12-32V wide operation voltage for all vehicles
8, sensor with rubber or metal bracket optional
9, full set waterproof, anti-shock, anti-interference can work in harsh environment
10, Ideal for various vehicles for back side blind zone detectionControl Box spec Sensor detection distance: Rated voltage: 24V Concrete wall: 12.46ft(3.8m) Rated Power: <13W Vehicle: 9.84-11.48ft(3m-3.5m) detection range: 0.3 ~ 3.8M Max. Person: 9.84ft(3m) Display Resolution: 0.1m Post(75mm diameter): 7.87ft(2.4m) Detection angle: single angle 70 ° ± 15 ° Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R Operating Temperature: -40 ° C ~ +80 ° C Waterproof rate: IP67 Waterproof: IP66 Sensor installation height: .6M--1.3M Shockproof: 10G Sensor installation space between two sensors: 0.2--0.3M Sensor with metal bracket/rubber bracket optional Monitor Spec Camera Spec 7" digital panel MONITOR Image Sensors: 1/3" HD SHARP CCD Ratio: 16:9 /4:3 TV System:PAL / NTSC Pixel: 800*480 waterproof rate:Ip67 Contrast: 500:1 Effective Pixels:512 x 582 pixels / 512 x 492 pixels Brightness: 400 cd/m2 Resolution:420TV lines System: PAL/NTSC auto switch Minimum Illumination:0.2Lux / F1.2 (0Lux IR ON) Video input: 2 way Pin Lens:f=2.5mm Audio input: 1 way optional Lens Angle:120° Backup: V2 auto reverse Power Supply:DC12-32V View angle: U/D/L/R Current Consumption:≤300mA Power supply: DC10-36V Operating Temperature:-20°C~70°C ,RH95％ MAX Operating temp.:-10°C ~ 65°C With duckfeet or U bracket, sunshade -
PS-7008-2

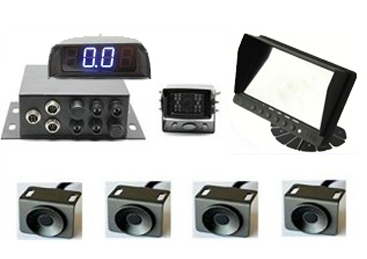

PS-7008-2 anti-collision radar system with LCD monitor display
1, 0.4-10m range detection high sensitive sensor
2, work with LED monitor only optional
3, work with 7" lcd monitor, camera optional
4, industrial design metal housing control box.
5, beep alert 5steps
7, DC12-32V wide operation voltage for all vehicles
8, sensor with rubber or metal bracket optional
9, full set waterproof, anti-shock, anti-interference can work in harsh environment
10, Ideal for various vehicles for back side blind zone detectionControl Box spec Sensor detection distance: Rated voltage: 12-32V Concrete wall: 27.88.8ft(8.5m) Rated Power: <8W Vehicle: 21.32ft(6.5m) detection range: 0.4 ~ 10M Max. Person: 16.4ft(5m) Display Resolution: 0.1m Post(75mm diameter): 13.2ft(4m) Detection angle: single angle 70 ° ± 15 ° Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R Operating Temperature: -40 ° C ~ +80 ° C Waterproof rate: IP67 Waterproof: IP66 Sensor installation height: 0.6M--2M Shockproof: 10G Sensor installation space between two sensors: 0.2--0.3M vehicle width ≥3M can install 6 sensors Sensor with metal bracket/rubber bracket optional Sensor extension cable <50M Monitor Spec Camera Spec 7" digital panel MONITOR Image Sensors: 1/3" HD SHARP CCD Ratio: 16:9 /4:3 TV System:PAL / NTSC Pixel: 800*480 waterproof rate:Ip67 System: PAL/NTSC auto switch Effective Pixels:512 x 582 pixels / 512 x 492 pixels Video input: 2 way Resolution:420TV lines Audio input: 1 way optional Minimum Illumination:0.2Lux / F1.2 (0Lux IR ON) Backup: V2 auto reverse Pin Lens:f=2.5mm View angle: U/D/L/R Lens Angle:120° Power supply: DC11-32V Power Supply:DC12-32V Operating temp.:-10°C ~ 65°C Current Consumption:≤300mA With U bracket, sunshade Operating Temperature:-20°C~70°C ,RH95％ MAX
